Name: RAE-109 Portable Veterinary Gastroscope | Innovative 360° Directional Rotation Control
Brand: JeetVet
SKU: 18448408
Rating: 4.75 (10 reviews)

Seeing Clearly, Caring Deeply, Your Partner in Animal Health

Become a Distributor Get a Quote

Language:

English

Seeing Animal Health Clearly

Home / All / Veterinary Endoscopes / Veterinary Gastroscope /

RAE-109 Portable Veterinary Gastroscope | Innovative 360° Directional Rotation Control

Categories	Veterinary Gastroscope
Brand	JeetVet
Model	RAE-109
Image Resolution:	High Definition (HD)
Purpose	Animal Gastrointestinal Examination
Working length	1200 mm
Outer diameter of the tube	5.8 mm
Inner diameter of the channel	2.0 mm
Bending angle	180°
Rotation control	360°
Depth of field	7mm ~ 100mm
Field angle	120°
Pixels	1,000,000
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time	Dec 22,2024

Contact Now

Favorites

Detail Information

Introduction to RAE-109 Portable Veterinary Gastroscope

JeetVet Veterinary endoscopes 360° directional rotation vs. Traditional endoscopes two directions

Compared to traditional endoscopes, JeetVet Veterinary endoscopes with 360° rotation control offers more convenient and flexible operation. It's a shorter learning curve that veterinarians can quickly master its use.

RAE-109 Portable Veterinary Gastroscope Overview

JeetVet Portable Veterinary Gastroscope is a high-performance endoscopic device designed for veterinary use to meet the needs of animal gastrointestinal examinations. With its portability, high-definition imaging and easy operation, the device has become an important tool for veterinary clinical diagnosis and is suitable for stomach examinations of small animals and some medium and large animals.

RAE-109 Portable Veterinary Gastroscope Application

JeetVet Portable Veterinary Gastroscope is suitable for lung lavage, foreign body removal, respiratory endoscopy, biopsy and minimally invasive surgery and examining stomach and duodenum of animals.

^{Main Features}

High-quality optical system

Provides Full HD resolution to ensure clear endoscopic images. The field of view angle is 120° , providing a wider observation range.

The depth of field ranges from 7 mm to 100 mm to adapt to different inspection depths.

Flexible mechanical design

Flexible insertion tube: The insertion tube is 1200 mm long and is made of medical-grade materials that are corrosion-resistant and antibacterial.

High flexibility: Large bending angles in all directions

Convenient operation and control

Ergonomic handheld controller for easy bending control and rotation.

The weight is less than 0.5KG. Ensures maneuverability and ease of use, reducing operator fatigue during prolonged procedures.

Durability:

Flexible tube undergoes rigorous aging tests. Designed for over 25,000 bends, guaranteeing long-term reliability.

Efficiency:

Quick and smooth diagnosis and treatment. Reduce operational difficulty and surgical time.

Portability and Convenience: The compact and lightweight design of the RAE-109 allows for easy transport and use in various settings, from busy veterinary clinics to remote locations. Its portability ensures that you can provide top-notch diagnostic services wherever needed.

User-Friendly Operation: The gastroscope can be connected to the smart devices, such as smart phone, tablet and laptop. The intuitive interface and ergonomic design make the RAE-109 easy to operate, even for users with minimal training. The controls are designed for quick adjustments, allowing for efficient and effective examinations.

Durable and Reliable: Constructed from high-quality materials, the RAE-109 is built to withstand the rigors of frequent use. Its robust design ensures longevity and dependable performance, providing veterinarians with a reliable diagnostic tool.

Flexible Insertion Tube: The flexible and slender insertion tube is designed to navigate the animal's gastrointestinal tract with ease, minimizing discomfort for the patient while ensuring comprehensive examination coverage.

Detailed Image of Portable Veterinary Gastroscope

Joystick design enables 360° directional rotation

Ergonomic design handle

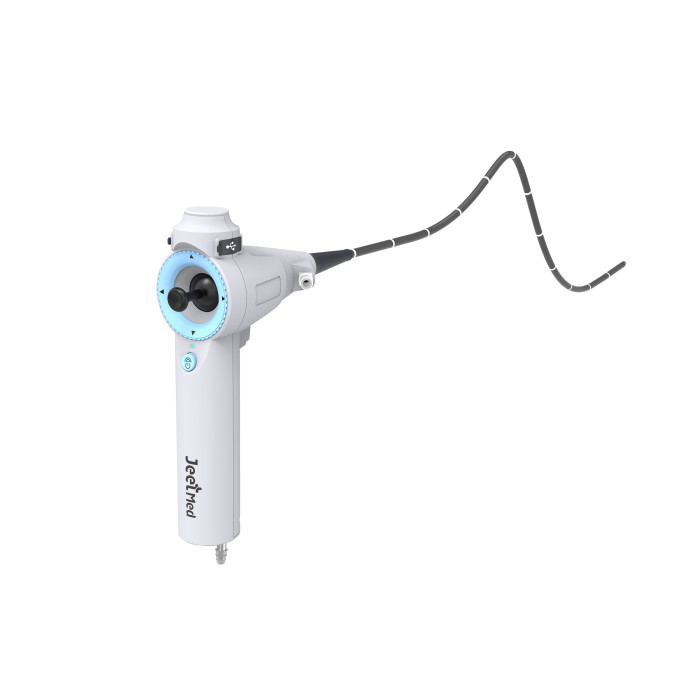

Veterinary gastroscope as a whole

Small diameter, large channel

Independent water & air supply channel

Four-layer medical grade material

Portable Veterinary Gastroscope Technical Parameters

General Parameters	Brand	JeetVet
	Model	RAE-109
	Purpose	Veterinary endoscopy, mainly used for stomach and digestive tract examination of small and medium size animals
Optical Parameters	Depth of field	7 mm - 100 mm
	Viewing Angle	120°
	Resolution	1080p Full HD
Mechanical Parameters	Working length	1200 mm
	Insertion tube material	Medical grade flexible material, corrosion-resistant and antibacterial
	Bending angle:	180°
Operation and Control	Control method	Handheld controller with joystick for 360° directional rotation control
	Display	Displayed by user's smart phone, tablet or computer
Lighting System	Light source type	Endoscope operates without internal electric power, drawing power from the user's mobile phone.
Connection and Compatibility	Connection interface	Use USB cable to connect with smart phones, tablet or computer
	Compatible devices	Support connection to smart phone, tablet, computer for data transmission and real-time monitoring
Other Functions	Disinfection method	Alcohol wiping，enzymatic cleaning solution or 2% glutaraldehyde disinfection
	Portability	Lightweight design, equipped with a portable case, convenient for carrying and use
	User interface	Friendly operation interface

Portable Veterinary Gastroscope Application Scenario

Veterinary endoscopes used in veterinary hospital

Veterinary Gastroscope RAE-109 used in veterinary clinics

RAE-109 Veterinary Gastroscope used in mid-east veterinary hospital

Applicable Scenarios

Veterinary Clinics: Ideal for routine gastrointestinal examinations, the RAE-109 provides veterinarians with the necessary tools to diagnose and treat a wide range of conditions effectively.

Veterinary Hospitals: Essential for high-volume settings where reliable and efficient diagnostic tools are crucial for patient care.

Field Services: Its portability makes the RAE-109 an excellent choice for mobile veterinary services, ensuring that high-quality diagnostics are available in remote and rural areas.

Specialty Practices: Perfect for specialized veterinary clinics focusing on gastroenterology, providing precise and detailed imaging for specialized care.

Precautions

The following actions are strictly prohibited during the use of veterinary gastroscopes.

Fold the joint between the handle and the tube

Coil the flexible tube

Fold the bending section by hands

Portable Veterinary Gastroscope Packaging Display

portable veterinary gastroscope outer packaging

Portable veterinary gastroscope inner packaging

After-Sales Guarantee

Warranty: Comprehensive warranty and support.
Customer service: Get technical support and training from the manufacturer.
We are committed to ensuring your complete satisfaction with our products. Our After-Sales Service Guarantee provides you with comprehensive support, including prompt responses to inquiries, technical assistance. Should you encounter any issues, our dedicated customer service team is available to resolve them efficiently and effectively. We stand by the quality of our products and are here to ensure that your experience with us is nothing short of excellent.
